Description

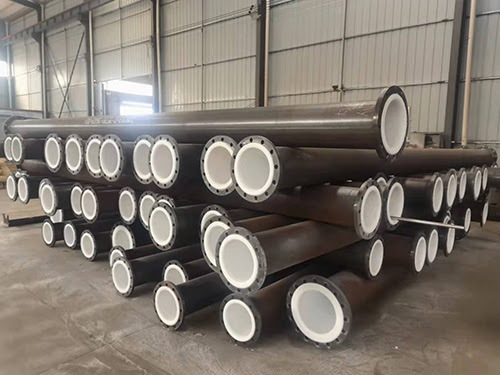

Our Polymer Lined Steel Pipes are advanced piping solutions that combine the mechanical strength of carbon steel with the superior corrosion and abrasion resistance of polymer linings. Designed for transporting aggressive chemicals, slurry, seawater, and other corrosive or abrasive media, these pipes ensure extended service life, reduced maintenance, and reliable performance in demanding industrial environments.

Product Range:

• PTFE (Teflon) Lined Steel Pipes

• HDPE / PE Lined Steel Pipes

• PP (Polypropylene) Lined Steel Pipes

• PVDF Lined Steel Pipes

• Custom Polymer Lined Pipe Solutions (straight, elbows, tees, reducers, spools)

Features & Benefits:

• Excellent corrosion resistance against acids, alkalis, and chemicals

• Superior abrasion resistance for handling slurry and abrasive media

• High structural strength from steel outer casing

• Leak-proof performance with flanged or welded ends

• Extended service life compared to unlined steel pipes

• Available in straight, elbow, bend, and custom spool designs

Sizes & Standards:

• Inner Diameter: 25mm – 1200mm (custom sizes available)

• Length: 1m – 6m (standard/custom lengths)

• Lining Materials: PTFE, HDPE, PP, PVDF (based on application)

• Pressure Rating: Up to 2.5 MPa (varies with size/design)

• Standards: ASTM, DIN, ISO, ASME

Applications:

• Chemical & Fertilizer Plants (acid/alkali transfer)

• Mining & Mineral Processing (slurry transport)

• Power Plants (ash, seawater cooling, chemical handling)

• Water Treatment & Desalination Plants

• Oil & Gas Industries
